Brand Name : RONGYAO
Model Number : youth racing atv70-1
Certification : EC,EEC,DOT,EPA
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 1000 pcs/month
Delivery Time : Within 20 Days
Packaging Details : Metal Frame with Carton
Product name : 70youth racing atv
Max horsepowe : 5.2kW/8000(r/min)
Max speed : 55km/h
Battery : 12V 4AH
Brakes,front/rear : FR:DRUM RR:DISC
Dimensions (L x W x H) : 1170X700X1150 mm
70CC/90CC/110CC;front double swing arm,foot brake,front drum brake,rear disc brake,RR.carrier,with battery charge
Model:
youth racing atv70-1
Product Description:
Engine type | Four Stroke ,single cylinder, |
Engine brand | Tianzong |
Displacement | 70 cc,90,110mL |
Cooling | Air cooled |
Max horsepower | 5.2kW/8000(r/min); |
Max torque | 7.0N.m/5000(r/min) |
Bore*stroke | 52.4×49.5 mm |
Max speed | 55km/h |
Climbing ability | ≥10° |
Ignition | C.D.I |
Starting system | Electric start |
Battery | 12V 4AH |
Carburetor brand | Pz19 |
Engine oil | 15W/40-SE |
Gear oil | * |
CHASSIS ETC. | |
Clutch | automatic |
Transmission | * |
Driveline | Chain drive |
Driving wheel | * |
Suspension,front/rear | FR:DOUBLE / RR:SINGLE |
Brakes,front/rear | FR:DRUM RR:DISC |
Brake operation | HAND+FOOT |
Tires,front/rear | FR/RR:145×70-6 |
Fuel capacity/type | 2.3L |
Weight,G.W./N.W. | 73/65KG |
Max load | 90kg |
DIMENSIONS | |
Wheelbase | 840 mm |
OA L*W*H | 1170X700X1150 mm |
Height to seat | 620 |
Min ground clearance | 100mm |
Carton size | 1185×760×650 mm |
Shipping info | 135PCS/40HQ |
Applications:
1. adult use only
2. Forest road
3. Riverbed, Stream,
4 Mountain Road / Beach
5. Farm / Pleasure Ground
Terms of transaction:
Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or moneygram. The delivery time is about 20 days.
Our Service:
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

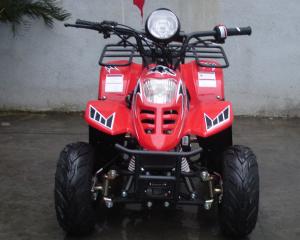

70CC / 90CC / 110CC Single Cylinder Four Stroke Atv With Front Double Swing Arm Images |
